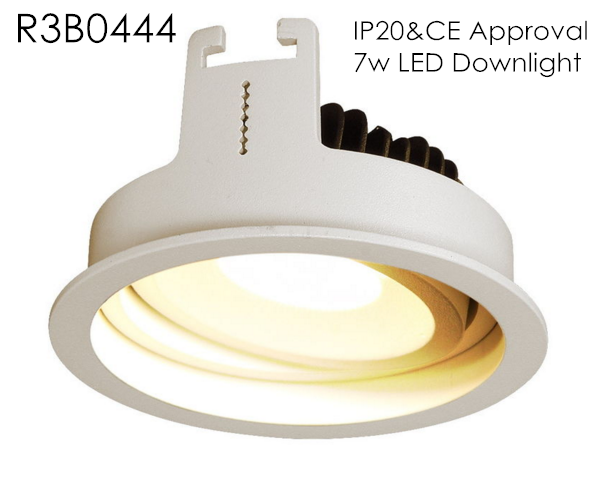

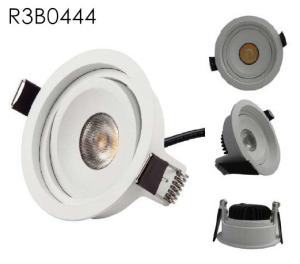

Mini 7W Tiltable 2700K Warm White LED Recessed Downlight COB 560LM Aluminum Cut out 85mm/R3B0444

Vellnice Lighting Company Ltd
Contact Now

Mini 7W Tiltable 2700K Warm White LED Recessed Downlight COB 560LM Aluminum Cut out 85mm/R3B0444

  • 1
  • 2

Brand Name : VELLNICE

Model Number : R3B0444

Certification : CE.ROHS

Place of Origin : Dongguan city,Guangdong Province,China

MOQ : 10-100PCS

Price : negotiation

Payment Terms : T/T,30% TT deposit before production,70% balance before loading

Supply Ability : 600000PCS/Month

Delivery Time : 20-25days

Packaging Details : 50PCS/CTN,With white inner box

Material : Aluminum die-casting body

Power : 7W

Voltage : 37V

Current : 180mA

Size : 94*H 51mm

Cut out : 85mm

CCT : 2700-3000K

Beam Angle : 36 degree

IP Rating : 20

NW : 0.22KG

GW : 13.5KG

Lumen : 560lm(2700K),610lm(3000K)

Packing : 50PCS/ctn,575*575*235mm

Contact Now

Basic datasheet of item R3B0444:

Brand Name Vellnice
Model Name: R3B0444
Material Aluminum die-casting body
Finish powder coating
Color White
Power 7W
Certification CE.ROHS
Installation spring
CCT 2700-3000K
Installation spring
Current 180mA
Volt 37V
Beam Angles 36 degree
Lighting Source COB CITIZEN LED
Specification 94*51mm
Cut Out Size 85mm
Features Extreme low heat,excellent lumen performance
NW 0.22KG
GW 13.5KG
IP Class 20
Packing info 50PCS/ctn. 575*575*235mm
Main Market Europe,North America,South Africa
Features :

Aluminum die-casting body and powder coating finishing.

Citizen COB 180mA Typical 7W,560LM output in CCT 2700K,610 lumen.

Output in CCT 3000K,8mm narrow trim design.

Multi optical light output direction in +_20 degree tilt angle,14mm distance in vertical level up and down position for antiglare function by simple and reliable mechanical design.

Compatible in 5-40mm ceiling thickness quick installation,suitable for use in areas like hotel,room,corridor,and which ceiling height under 5 meters

Compliance with CE and ROHS certification

Authorized Exclusive sales territory in Scandinavia is occupied.

Mini 7W Tiltable 2700K Warm White LED Recessed Downlight COB 560LM Aluminum Cut out 85mm/R3B0444

Our Servince:

1. Provide OEM&ODM design to satisfy your requirement;

2. your requiry will be replied within 24 hrs;

3. A strong R&D centre with 30 senior engineers and professinal sales team to slove all your problems;

4. Keep updating the advance led products every month;

5. All the products are checked by a strictly inspection system

FAQ :

Q1: What is the Warranty for the lamps?

A1: For the lamps,we have 3 years warranty. If any quality problems on our side occured in the period, we will take on the shipping cost and replacement.

Q2: What is colour temperature?

A2: We offer lamps in warm white, natural white, pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature (CCT) is, the warmer the light given by the LED:

Warm white = 2700K-3200K

Natural white = 4000K-4500K

Pure white = 5000K-5500K

Cool white = 6000K-6500K

Q3: What is CRI?

A3: CRI is a figure which feedback the real objects colors. We offer 80Ra or higher.

Q4: What is the MOQ of the lamp?

A4: The MOQ of this series lam is 50 PCS; And we will give our best discount according to the Qty of the order.

Q5: It is important for the LED driver, is the quality OK, what is the brand?

A5: We use Constant current & isolated power driver for the lamps, Therefore, we can make the lamp 3 years warranty.

Shipping and Payment:

Trade Terms:

1).Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery .

2).Production lead time for the bulk: 25days

3).Shipping freight are quoted under your requests

4).Shipping port: Shenzhen, Mainland China

Mini 7W Tiltable 2700K Warm White LED Recessed Downlight COB 560LM Aluminum Cut out 85mm/R3B0444

OEM&ODM Servince information:

With the mission to improve the architectural lighting industry,grow with our customers,our professionalism in this industry really creates more value-added services to our valuable customers.

Mini 7W Tiltable 2700K Warm White LED Recessed Downlight COB 560LM Aluminum Cut out 85mm/R3B0444

Buying Guide as below:

1. Send the Inquiry
2. Check the quotation.
3. Place order. Payment term(30%~40%):T/T,60%-70% balance before loading
4. Start production. Manufacture the products, and package them, with shipping mark on each carton.
5. Inspection or we help take photos for you.
6. Pay the balance.
7. Load and deliver goods.
